SCT-C/SCTS-C 聯軸器
- 開縫型 / 夾緊式 / 撓性聯軸器
- 一體成型、高扭力、低慣性、零背隙、剛性大
- 輕巧、適合譯碼器、小馬力傳動、偏角誤差小
- 固定方式 : 夾緊式 (易拆卸、不損軸心)
- SCT-C 鋁合金 / SCTS-C 不鏽鋼

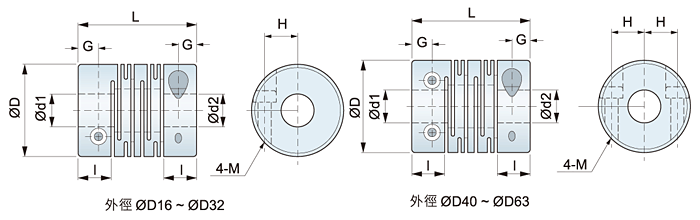

| 型號 | D | I | L | G | H | M | Ød1 x Ød2 標準孔徑公差 (H8) |
重量 (g) |
|
|---|---|---|---|---|---|---|---|---|---|
| Min | Max | ||||||||
| SCT-12C | 12 | 5 | 18.5 | 2.5 | 4 | M2 | 3 | 5 | 3.6 |
| SCT-16C | 16 | 6.5 | 23 | 3.25 | 5 | M2.5 | 4 | 6 | 9.2 |
| SCT-20C | 20 | 7.5 | 26 | 3.75 | 6.5 | M3 | 4 | 8 | 16 |
| SCT-25C | 25 | 8.5 | 31 | 4.25 | 9 | M4 | 5 | 10 | 28 |
| SCT-32C | 32 | 12 | 41 | 6 | 11 | M4 | 6 | 14 | 64 |
| SCT-40C | 40 | 15 | 56 | 8.5 | 14 | M5 | 8 | 16 | 140 |
| SCT-50C | 50 | 18 | 71 | 10.5 | 18 | M6 | 12 | 22 | 270 |
| SCT-63C | 63 | 22 | 90 | 13 | 24 | M8 | 14 | 35 | 530 |
| SCTS-12C | 12 | 5 | 18.5 | 2.5 | 4 | M2 | 3 | 5 | 10 |
| SCTS-16C | 16 | 6.5 | 23 | 3.25 | 5 | M2.5 | 4 | 6 | 25 |
| SCTS-20C | 20 | 7.5 | 26 | 3.75 | 6.5 | M3 | 4 | 8 | 43 |
| SCTS-25C | 25 | 8.5 | 31 | 4.25 | 9 | M4 | 5 | 10 | 78 |
| SCTS-32C | 32 | 12 | 41 | 6 | 11 | M4 | 6 | 14 | 170 |
| SCTS-40C | 40 | 15 | 56 | 8.5 | 14 | M5 | 8 | 16 | 370 |
| SCTS-50C | 50 | 18 | 71 | 10.5 | 18 | M6 | 12 | 22 | 750 |
| SCTS-63C | 63 | 22 | 90 | 13 | 24 | M8 | 14 | 35 | 1400 |
